The CTS-02UT/04UT/08UT/16UT/40UT series is our new multi-channel ultrasonic data acquisition and secondary development platform. It integrates ultrasonic high-voltage transmission, echo signal reception, amplification, AD acquisition and processing functions. Besides it provides the secondary developments for user to develop new software--The processing of the data logged by the CTS-02UT~40UT enables users to customize functions and interfaces, and then integrate them into the system to form a variety of ultrasonic application systems.
The CTS-02UT/04UT/08UT/16UT/40UT series is our new multi-channel ultrasonic data acquisition and secondary development platform. It integrates ultrasonic high-voltage transmission, echo signal reception, amplification, AD acquisition and processing functions. Besides it provides the secondary developments for user to develop new software--The processing of the data logged by the CTS-02UT~40UT enables users to customize functions and interfaces, and then integrate them into the system to form a variety of ultrasonic application systems.
The “XX” part in the “the CTS-XXUT” represents the numbers of channels, making an example--the CTS-08UT means that the instrument has 8 UT channels and channels are blockable.
*Note: If more channels are needed, please take the CTS-40UT into consideration, which supports 40 UT channels.
Structural principle:

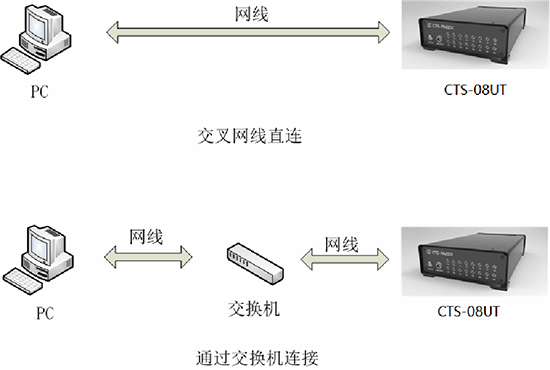

The CTS-xxUT is an independent module, which is connected to the monitoring host through the network cable. The software running on the monitoring host sends instructions to the CTS-xxUT through the network interface, and receives the data returned from the CTS-xxUT, as shown in the figure below.
Features:
Secondary Developments
● Provide a full set of client sample programs PA22X-DEMO source code. The DEMO code already has basic multi-channel ultrasonic functions. Users can refer to the DEMO code for secondary development or add functions directly to the DEMO code for development.
● Thoughtfully designed secondary programming access enables an intuitive and simple programming, supporting manual debugging. Before programming, user can send instruments to the CTS-02UT~40UT manually to test the effect of the modification of parameters
Excellent Physical Features
● Internal integrated ultrasonic excitation circuit, negative square wave form, voltage adjustable from - 25V to - 300V, adjustable pulse width from 30ns to 1000ns, maximum matching with different types of transmitting elements.
● Internal integrated with most of the signal processing and detection functions required by ultrasonic flaw detection instrument, such as A-wave compression, gate detection, sound path measurement, etc., you can quickly set up a standard ultrasonic flaw detection system.
● Offers raw data for user-processing by sending raw AD acquisition data to clients
| Emitter | |
| PRF | 25～10KHz |
| Voltage | Negative square wave, -25～-300V, 25V Stepping |
| Pulse width | 30～1000ns，5ns Stepping |
| Trigger | Internal/ external/ Encoder |
| Receiver | |
| Horizontal Linearity Error | ≤0.4% |
| Vertical Linearity Error | ≤3% |
| Surplus Sensitivity | ≥56dB when using 2.5P20 probe to detect 200mm block with Φ2 flat bottom hole. |
| Damping | 400, 80 |
| Sampling Rate | 100M |
| Working Frequency | 0.5～15MHz |
| Gain | 0.0～110.0dB |
| Filter | Wide-band and narrow-band |
| Rectification | Positive, Negative, Full-play, RF, Spectrum |
| Crosstalk between channels | >60dB |
| Maximum input signal | 14VPP |
| Coverage | 0.0～10000mm (Steel Longitudinal wave), adjustable in continuity, min step 0.1mm |
| Display delay | 0～999.9μs |
| Display shift | -7.5～3000μs |
| Signal Processing | |
| Gate | A、B |
| Starting point gate | Full scope |
| Gate Width | Starting point to full range |
| Gate Height | 5～95% |
| Test Mode | Frontier, Peak |
| Data Display | Reading in Gate: Range & Sound Path |
| Measuring Resolution | 0.1mm |
| System/other | |
| Power Consumption | 6W，varies according to Configuration |
| Data Transmission | 1000M Ethernet |
| Size | 221mm×372mm×84mm |
| Probe Port | C5 |
| Encoder Port | 2 Incrementing encoder |
| USB Port | 1 |
| I/O Port | Round type |
| Net Port | 100M/1000M Ethernet |
| Debug Port | COM 1 |
