The CTS-8682 is an ultrasonic pre-amplifier with mini size, low noise, wide band and high gain, based on unique patented technology of the Goworld.
The CTS-8682 is an ultrasonic pre-amplifier with mini size, low noise, wide band and high gain, based on unique patented technology of the Goworld.
Light and handy, only 90mm×55mm×23 mm in size, water- and dust- proof.
Low Noise, Wide Band, High Gain, and Hi-Fi.
Protection from H-Volts on Input & Output Circuits and Prevention from Mis-plugging.
Power-shift technique by monocell, allowable for outsourced power supply or recharging.
Model:
Model | CTS-8682A | CTS-8682B | CTS-8682C | CTS-8682D |
Bandwidth | 2kHz～2MHz | 0.5～10MHz | 0.5～20MHz | 20kHz～34MHz |
EIN | 5 µV p-p | 10µV p-p | 10µV p-p | 15µV p-p |
Parameters:
| Gain | 30dB(customizable bandwidth) |
| Input Impedance | 700Ω(Tunable accoridng to the probe impedance，generally 1MΩ、100KΩ) |
| Output Impedance | 50Ω |
| Output Volts Range | 2VPP |
| Battery Power Endurance | >30小时 |
| Signal Port | LEMO 00 |
| Power Supply Port | LEMO OB |
| Size/Dimensions | 90mm×55mm×23 mm |
| Weight | 160g |

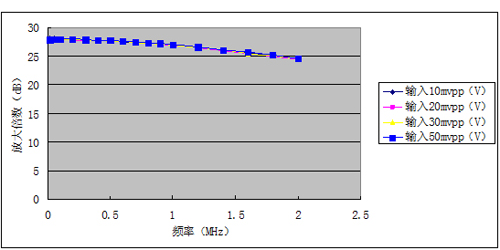

Frequency Characteristic Curve and Amplification Times of CTS-8682A

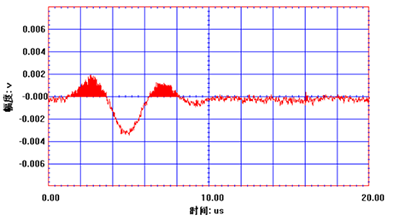

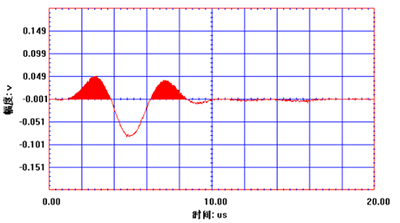

Original Waveform of 300KHZ Transducer, Not Preamplified
Preamplified Waveform of 300KHZ Transducer

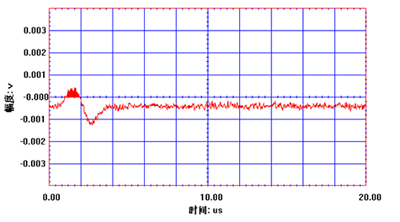

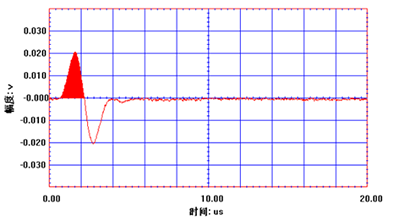

Original Waveform of 0.5MHz Transducer, Not Preamplified
Preamplified Waveform of 0.5MHz Transducer

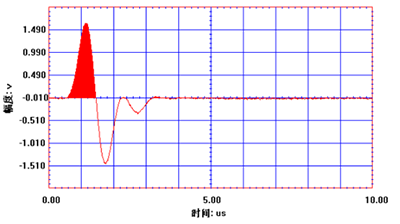

Original Waveform of 1.0MHz Transducer, Not Preamplified

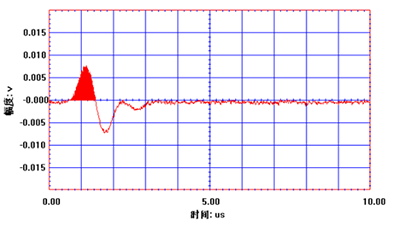

Preamplified Waveform of 1.0MHz Transducer
Applications：
1.Supply of more gain or elevation of wide-band SNR in order to optimize echo-acquisition field.
2.Elevation of SNR during inspection on materials thick and causing high ultrasonic attenuation and scattering, like nodular cast iron, austenic steel, brass, bronze, rubber, fiberglass or some kind of composites.
3.Compensation for amplitude loss due to transmission through long cable between probe & instrument. Improving SNR of long-distance transmission.
4.Preamplification on diffraction signals of "tips" during TOFD inspection.
5.Preamplification for EMAT inspection.
6.Preamplification for inspection on front pile of concrete
7.Preamplication on elastic modulus measurement of rock or ore, acoustic scattering from bubble of water, other kind of liquid or plankton, and even biological tissue analysis.
8.Measurement on motives in the industry involving oil gas, rock and mineral, propagation signatures of seismic wave and ultrasonic velocity testing for seismic parameter relations.
9.Preamplification for acquisition of AE signals.
Demos：

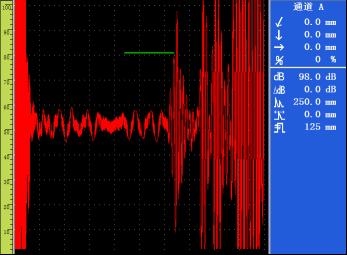

Time-base noise while inspection on 250-thick object with 1MHZ TOFD probe, not preamplified by CTS-8682

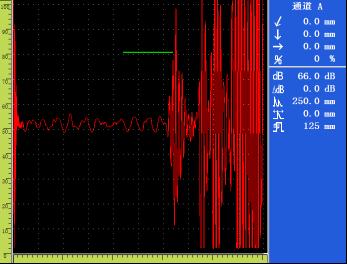

Time-base noise while inspection on 250-thick object with 1MHZ TOFD probe, preamplified by CTS-8682

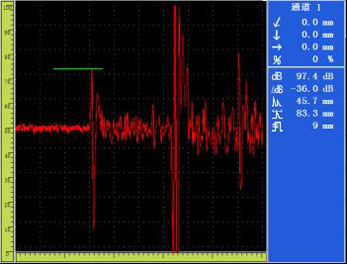

Time-base noise while inspection on thin object with 7.5MHZ TOFD probe, not preamplified by CTS-8682
Time-base noise while inspection on thin object with 7.5MHZ TOFD probe, preamplified by CTS-8682
