16:64 PA 2 TOFD or 2 Conventional Channels (T&R) .

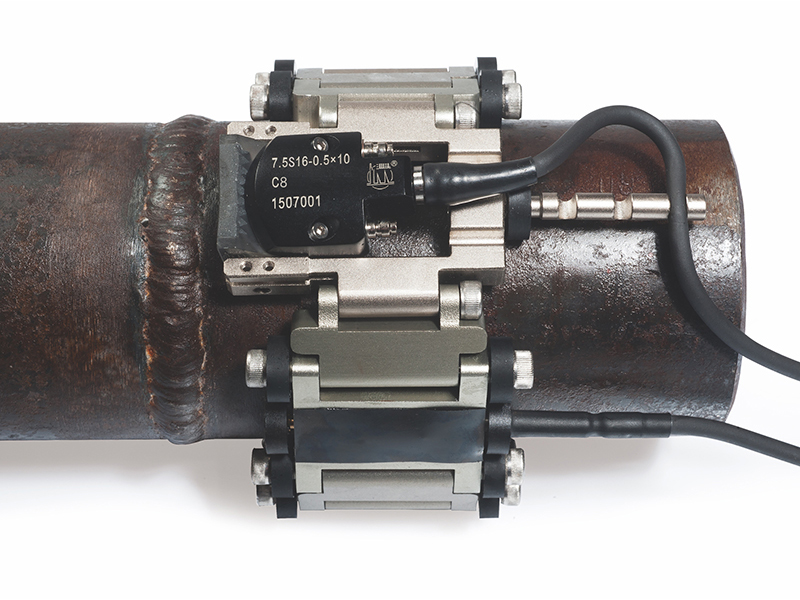

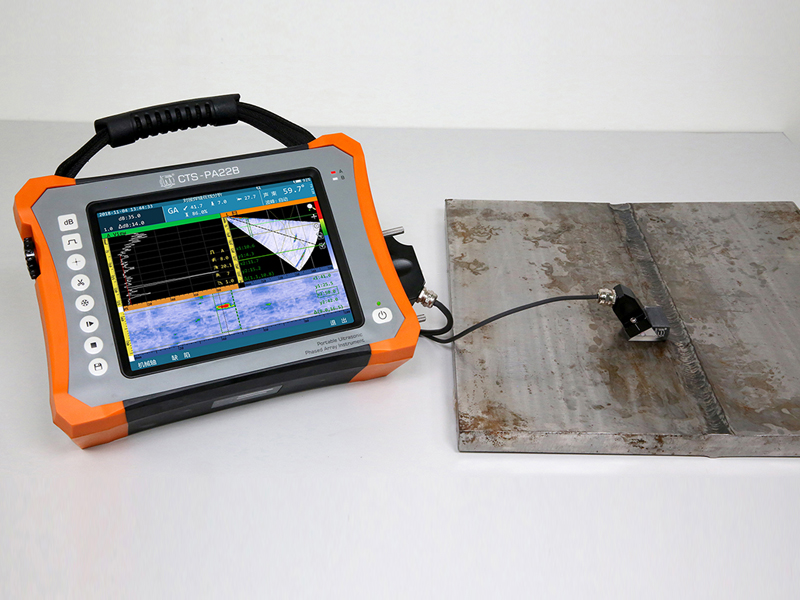

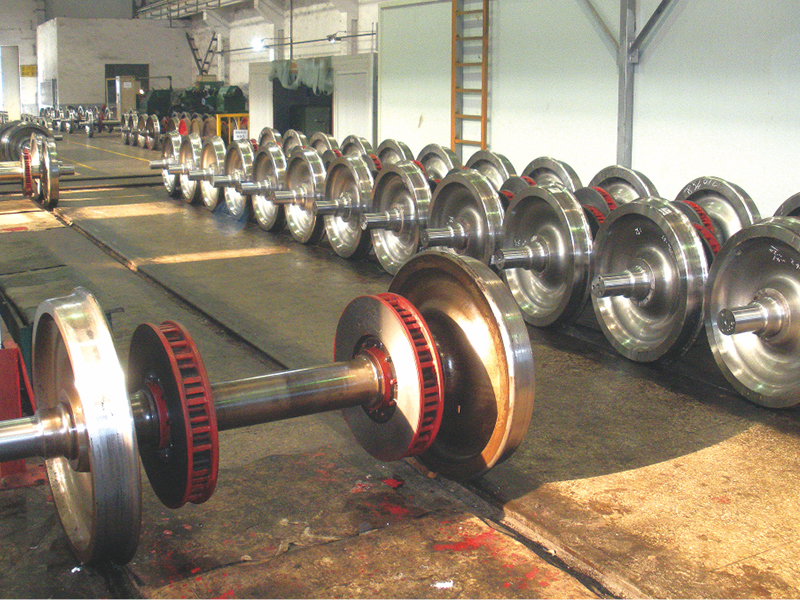

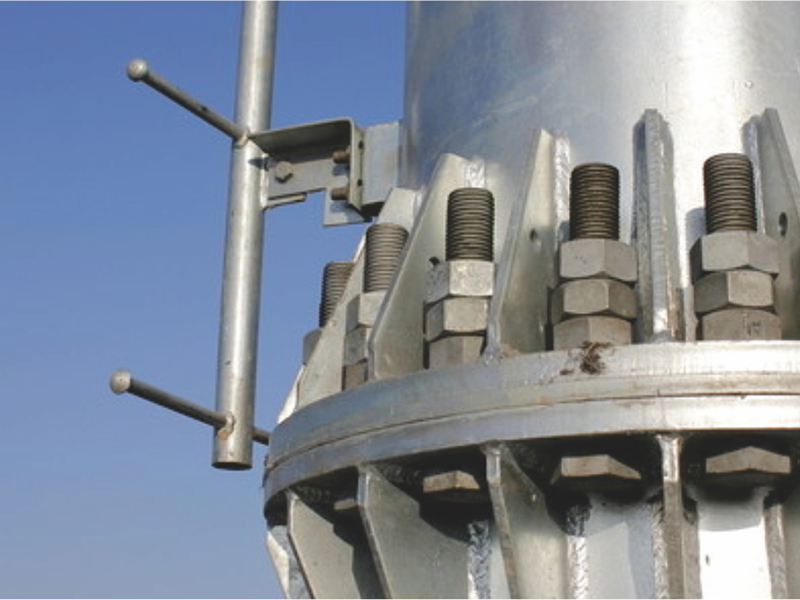

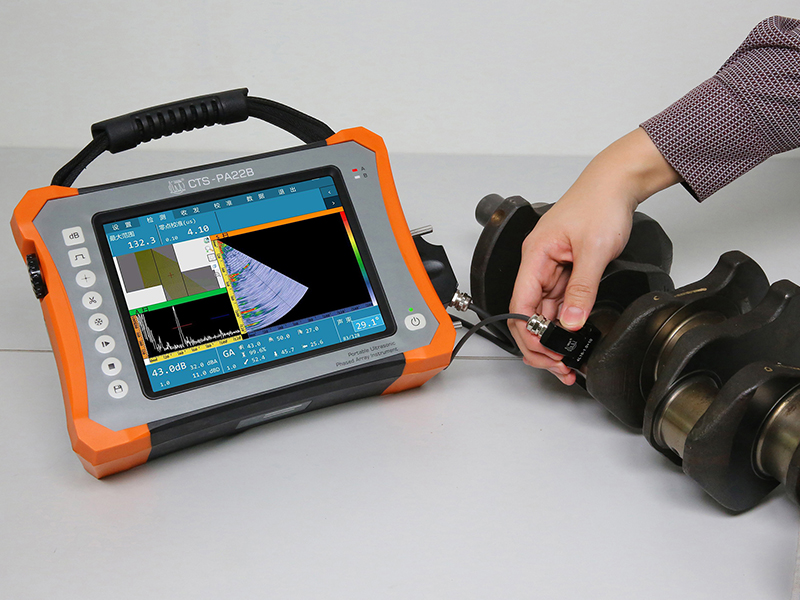

Butt weld crankshaft pipeline corrosion rail weld rim axle bolt and TKY etc.

With diffusion angle measurement delay calibration flank measurement PCS calibration Lateral wave and backwall echo measurement encoder calibration and depth calibration; image processing with contrast magnification SAFT straightening and differential .

With sound velocity calibration delay calibration angle calibration AVG calibration DAC calibration; with waveform comparison waveform envelope peak memory continuous storage automatic gain and other functions.

All modules have a 3D process simulation model which can customize the exclusive inspection process for users and provide a complete solution in one stop.

Supports ACG and TCG curve compensation functions solves problems such as uneven energy distribution and measurement error during S-scan. The calibration flow design of sound velocity delay ACG TCG and encoder is simple and easy to use.

With dynamic depth focusing and image smoothing for high discernibility at different depths; image zooming and panning for image display custom layout; and gate expansion for micro-inspection of defective images.

Omnisealed water&dust -proof but capable of fan-free heat dissipation over any adversities. Hotkey parameters setting dual USB port for instant data dump and instrument upgrade HDMI port for external display of unlimited size.

Delay precision up to 2.5ns improve the accuracy of phase delay evident inhibition on sidelobes as to enhance vertical and horizontal discernibility as well as to improve imaging definition.

Responsive A/L/S/C/TOFD scan imaging Encoder or time-ba

To be automatically generated according to beam angle focal length scan mode specs of probe and wedge with auto-optimized angle stepping of S-scan.

3 options of filtering:0.5-9.6MHz 2.5-12.9MHz 3.8-19MHz. Auto Optimization of pulse width according to probe frequency; Excellent noise processing.

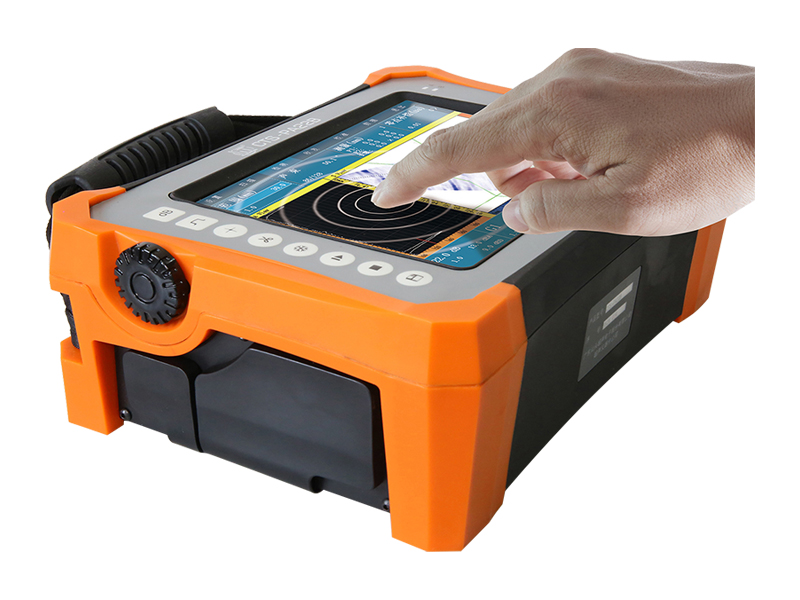

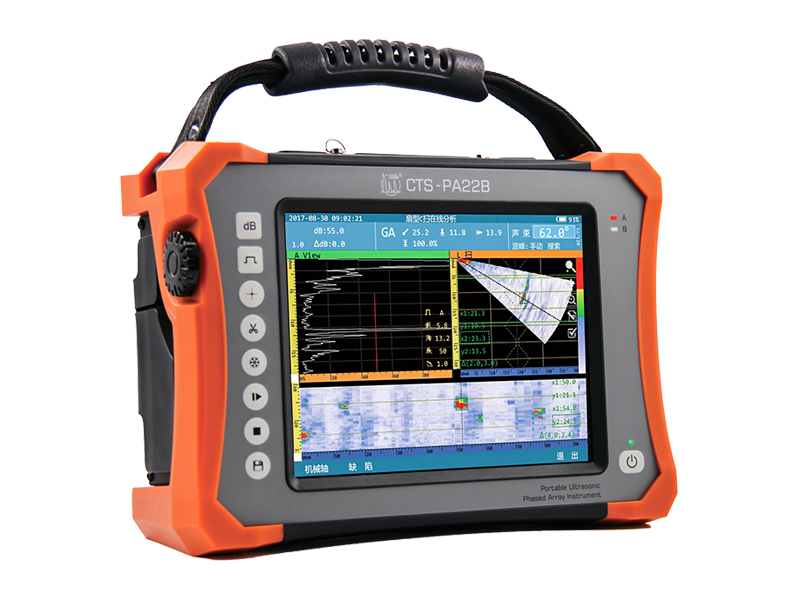

11-inch IG & WVGA (800x600) TFT display touch pad ensuring nice visual effect outdoors or under strong sunlight.

AC/DC optional allowing engagement of 2 pieces of battery collectively in turn or by hot swap to make sure duration of 6+ hrs.
