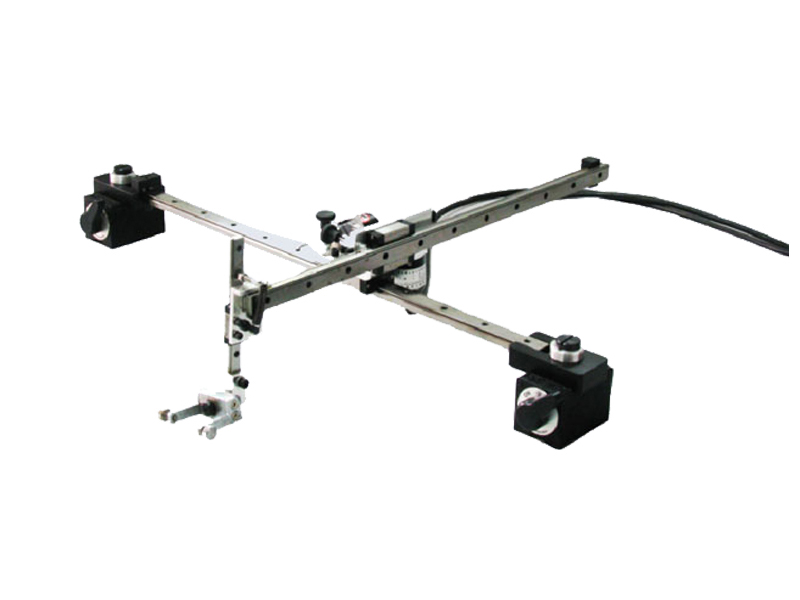

The Manual C-scan Imaging Scanner SCQcscan-1 supports free slipping along X & Y axes which reflects location information. It can be coupled to UT instruments with dual-encoder ports, and suitable for contacting C-scan imaging of metallic or composite plate-like objects.
The Manual C-scan Imaging Scanner SCQcscan-1 supports free slipping along X & Y axes which reflects location information. It can be coupled to UT instruments with dual-encoder ports, and suitable for contacting C-scan imaging of metallic or composite plate-like objects.
Optional X- & Y-axis resolution, max 0.1mm/step.
Magnetic or vac-sorb pedestals are optional according to different materials.
This scanner can contribute to a complete UT imaging system once coupled with CTS-1008plus instrument and CTS-04PC board.
| Dimension | Optional Accessory | |
| Path X, Y | 300×250（mm） | Couplant-cycling Unit |
| Size | 580×480×150 | |
| Weight | 3.5kg |
