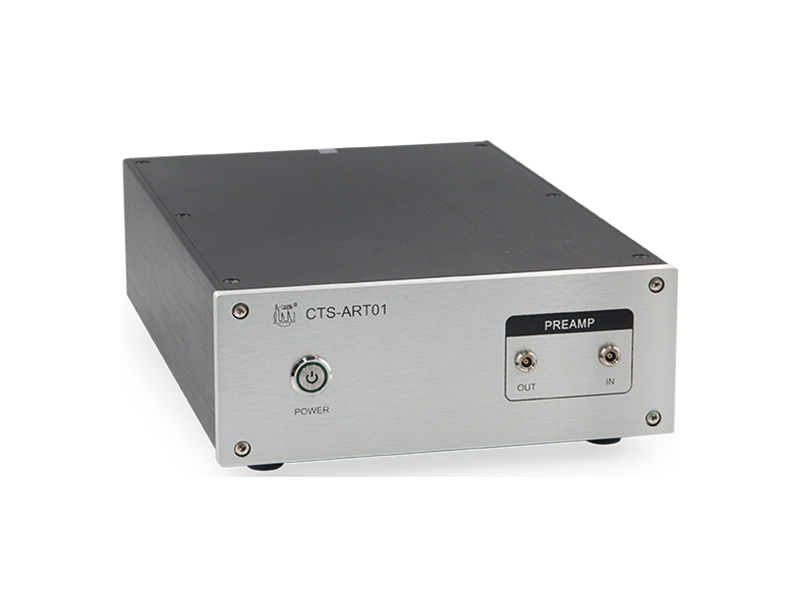

The CTS-ART01 features high-power voltage, able to generate multicycle frequency-variable signals and multicycle bipolar square wave pulse burst signals and FM square wave signals in any proportion.
The high-power ultrasonic pulser-receiver portfolio launched by our company is designed for the NDE and NDT of materials, especially for highly attenuative and highly scattering materials, such as concrete, rubber, wood, synthetic materials. Besides it is suitable for air coupling, EMAT and Nonlinear Ultrasonic Testing. In the inspection of composite materials and parts with limited contact areas，the modularization design ensures the reproducibility by generating super-short RF pulses (as short as a single cycle); it also has 10 kilowatt power so as to drive the low-power transducers.
The CTS-ART01 features high-power voltage, able to generate multicycle frequency-variable signals and multicycle bipolar square wave pulse burst signals and indefinite scale FM square wave signals.Parameter
Bipolar square wave: frequency of 20kHz~300kHz and the max voltage of 2400Vpp.
Bipolar square wave: frequency of 300kHz~1MHz and the max voltage of 2400Vpp.
Bipolar square wave: frequency of 700kHz~3MHz and the max voltage of 2400Vpp.
Linear FM sine wave: more than 32 cycles, frequency of 20kHz~500kHz and voltage of 500Vpp; the Total Harmonic Distortion (THD) is ≤5%.
Linear FM sine wave: more than 32 cycles, frequency of 500kHz~5MHz and voltage of 500Vpp.
Receiver dynamic range: 160dB
Signal bandwidth:20KHz~5MHz (-3dB)
Comes standard with the UT PC, transmitter, tailored UT probe and pre-amplifier.
Companioned Probe: DPC concrete dry-coupling low-frequency probes; low-frequency wheel probes; air coupling probes; nonlinear lithium niobate probes; high-power low-frequency probe; EMAT longitudinal and shear wave probe, etc.
- Supports custom-made software development & Customized modularization
| Voltage | AC 220V 50Hz |
| Rated Power | <100W |
| High voltage transmitter circuit | |
| Voltage | 200Vpp~1000Vpp, 5 settings adjustable |
| Frequency | 300kHz~1MHz, tunable, per step of 0.1kHz |
| Pulse | 1~32cycles (Max PRF 10Hz) |
| Receiver Circuit | |
| Signal Bandwidth | 300kHz~3MHz(-1dB) |
| Dynamic Range | 160dB |
| Dimensions | 380mm×210mm×190mm (length×width×height) |
Research on the inspection of Thick-wall & highly- attenuation materials
Research on the Air coupling Ultrasonic Testing
- Research on the Low-frequency Ultrasonic Testing
