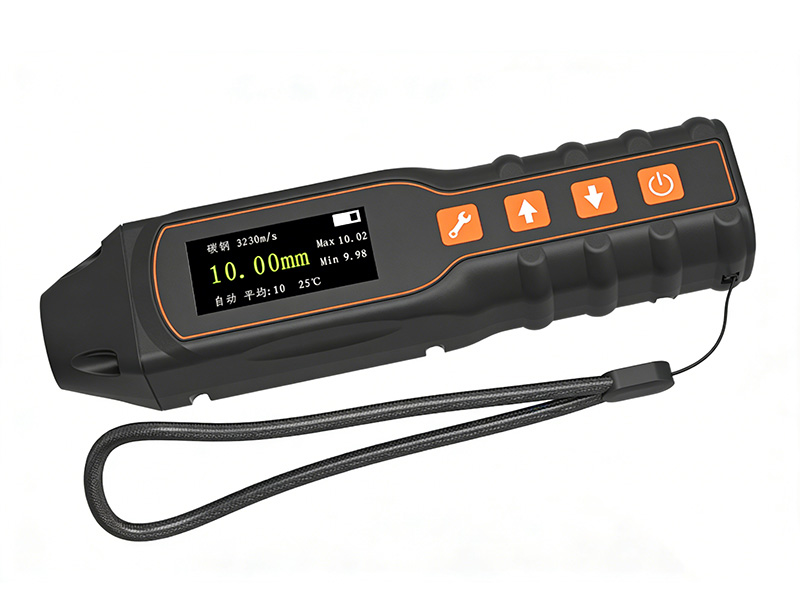

The CTS-410 pen-type electromagnetic acoustic thickness gauge utilizes Electromagnetic Acoustic Measurement technology. It enables non-contact measurement without the need for couplants and can penetrate common non-conductive coatings (such as paint and enamel) to directly measure the base material thickness. Lightweight and user-friendly, this instrument is ideal for rapid on-site thickness testing.
The CTS-410 pen-type electromagnetic acoustic thickness gauge utilizes Electromagnetic Acoustic Measurement technology. It enables non-contact measurement without the need for couplants and can penetrate common non-conductive coatings (such as paint and enamel) to directly measure the base material thickness. Lightweight and user-friendly, this instrument is ideal for rapid on-site thickness testing.
Compact & Portable: Small footprint and simple operation for easy carrying.
Versatile Material Compatibility: Suitable for various conductive metals, including carbon steel, copper, and stainless steel.
Couplant-Free & No Surface Prep Needed: Eliminates the need for couplants and surface grinding, making measurements much more convenient.
Coating Penetration: Measures through coatings, tolerating paint, cladding, and oxide scale on the test surface.
High-Temperature Capability: Suitable for thickness measurement in high-temperature environments.
Wireless Connectivity: Supports Wi-Fi connection to tablets for remote control.
| Measurement Range: | 1.5mm - 100mm (Steel) |
| Display Resolution: | 0.01mm |
| Measurement Accuracy: | ±(0.05 + H×1%) mm |
| Maximum Liftoff: | 3mm (Material dependent) |
| Material Velocity: | 1000 - 9999 m/s (Adjustment step: 1 m/s) |
| Thickness Measurement Modes: | Auto, Single Gate, Dual Gate |
| Measurement Gates: | Gate A, Gate B |
| Excitation Method: | Permanent Magnet |
| Weight: | Approx. 280g (Standard Probe) |
| Dimensions: | Approx. 180mm × 42mm × 38mm |
| Battery Type: | Built-in Lithium Battery |
| Operating Temperature: | -15℃ to 45℃ |
| Storage Temperature: | -40℃ to 60℃ |
| Ingress Protection Rating: | IP54 |
Petrochemical / Natural Gas Pipelines
Power Industry
Steel Industry
Metallurgical Industry
Boilers and Pressure Vessels
