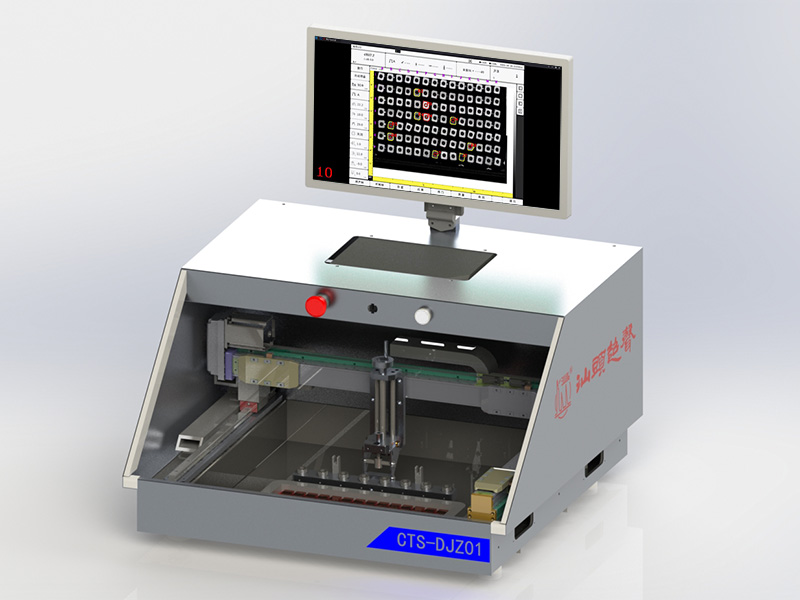

CTS -DJZ01 Desktop Immersion C Scan System is a high-precision intelligent inspection system specially designed for small size precision workpieces. Integrated with our in house developed ultrasonic automatic inspection software & hardware system and equipped with the CTS PA22M phased array module, it supports both conventional multi channel C scan and phased array C scan, well suited for inspection requirements of small sized complex structure components.
CTS -DJZ01 Desktop Immersion C Scan System is a high-precision intelligent inspection system specially designed for small size precision workpieces. Integrated with our in house developed ultrasonic automatic inspection software & hardware system and equipped with the CTS PA22M phased array module, it supports both conventional multi channel C scan and phased array C scan, well suited for inspection requirements of small sized complex structure components.
Dual scan mode： Equipped with multi channel architecture as standard, the system supports simultaneous scanning by multiple conventional high frequency immersion probes to cover several test workpieces at once and boost inspection efficiency. It can also switch to phased array scan mode to perform phased array C scan with phased array probes.
AI Assisted Defect Evaluation: The customized intelligent AI aided defect evaluation system automatically identifies test workpieces upon scan completion and marks out defects according to pre set criteria. Built in parameter tuning is available, allowing users to adjust marking rules to match specific defect assessment requirements.
High precision Tooling: High precision tooling enables accurate probe positioning and effectively mitigates adverse effects caused by vibration. Pitch angle adjustment capability is also provided. It flexibly adapts to diverse process requirements and accommodates workpieces of various sizes, delivering stable and highly compatible support for inspection operations.
Lightweight & Compact Footprint: Engineered around the core concept of “compactness and high efficiency”, this desktop immersion C scan system adopts a lightweight small form factor design, striking an optimal balance between full functionality and space utilization.
| Project | Parameter |
| Number of c hannels | 16 parallel channels, supports 16 transmit 16 receive (16T 16R) operation |
| Support the number of probe array elements | Extend to a maximum of 512 |
| The maximum number of scan lines per frame | 512 |
| Digital frequency | 100MHz,10bit |
| analog gain adjustment | 80dB |
| Bandwidth | Standard mode: 0.5 MHz to 20 MHz (-3 dB); Low frequency mode: 0.3 MHz to 18 MHz (-3 dB) |
| filter | High Pass,Low Pass,Narrow Band |
| Detection Mode | Full Wave、Positive、Negative |
| Launch voltage | 20Vpp, 40Vpp, 110Vpp (50Ω load) |
| Pulse width | Standard mode: 50ns to 500ns; Low frequency mode: 50ns to 1250ns |
| Maximum repetition frequency | 20kHz |
| external interface | USB2.0, dual axis encoder, I/O (6 connection signals, power-on control signal) |
| Data Interface | Wi Fi & Gigabit Ethernet via USB 2.0 |
| Power supply voltage | AC 220V，50Hz |
| Detection range | Length: 375mm × Width: 250mm |
| Adjustment range of probe height | 0～45 mm |
| Probe type | Conventional probe, phased array probe |
| Equipment weight | About 50 kilograms |
| Equipment dimensions | Approx. L 75 cm × W 70 m × H 40 cm |
New Energy: Blockage detection for cooling water plate flow channels.
Electronics Manufacturing: Cold joint identification for wire harness welded joints.
Composite Materials: Delamination analysis of copper-aluminum composite plates.
