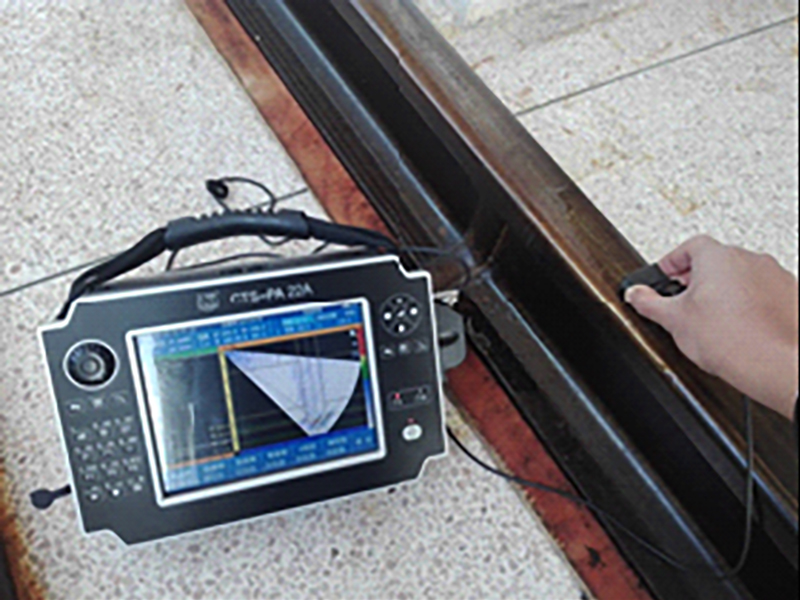

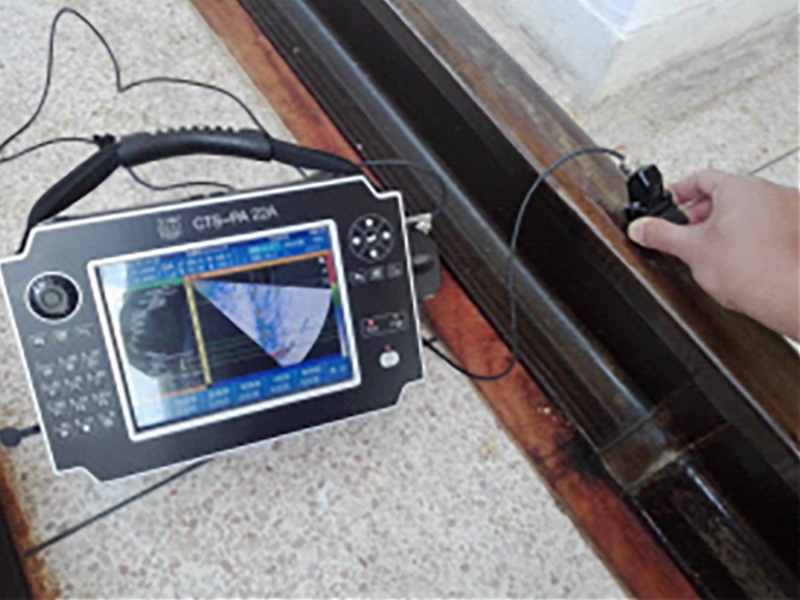

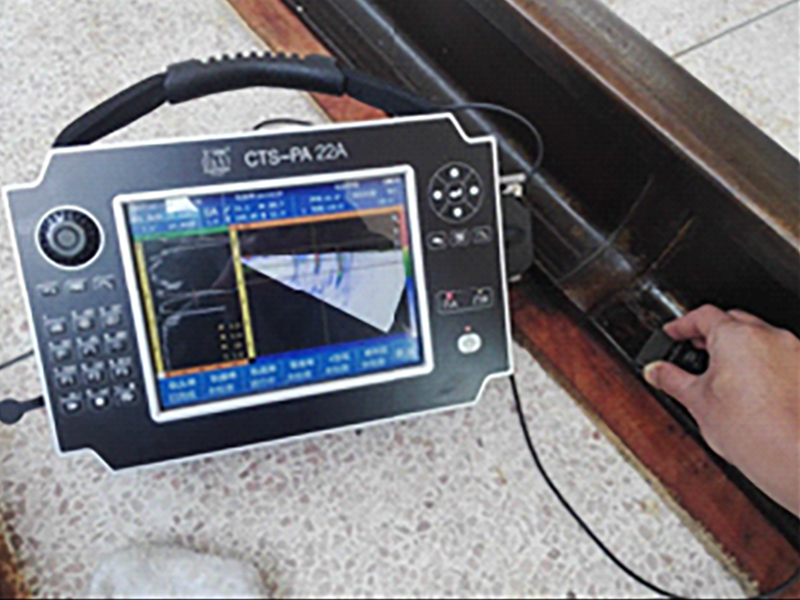

Rail Weld Inspection

• 16:64PR Phased Array Module & UT Dual Channels

Modularization of Software

The modularization of software separates the weld inspection module, process design module and file management module, achieving the division of operation.

3D Simulation Model for Rail Weld

• Supports 3D simulation model for rail weld

• Provides one-step schemes for software, probe and proces

Dynamic Depth Focusing

• Supports dynamic depth focusing to reach good resolution in different depth.

Imaging Smoothing

• Supports image smoothing capability and vibrant image display.

Online Analysis

• Quick access to multiple files

• Quick adjustment of sound velocity and gate

Fan-free Design

The full-sealed housing, water & dust proof design and the mode of fan-free heat dissipation are suitable for hazardous conditions.

Focus Law

• Automated generation of focus law based on beam angles, focal length, scan mode and parameter of probes and wedges, achieving the auto-optimized setup of S-scan scan angles increment.

ACG & TCG Curve Compensation

• Supports ACG & TCG Curve Compensation, addressing the problem of uneven energy distribution in S-scan and measurement deviation, etc.

Filter

• Optional filtering modes: 0.5-9.7MHz, 4.0-12.5MHz, 6.7-20.8MHz.

• Auto optimization of pulse width based on probe frequency features exceptional noise processing capability.

Display

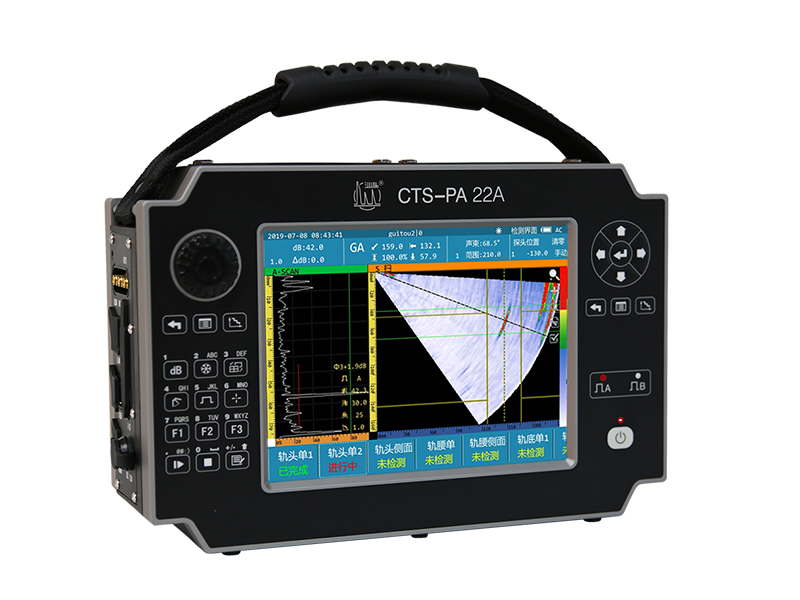

The CTS-PA22A is fitted with an 11-inch industrial-grade TFT screen (WVGA resolution 800×600), with touchable operation, providing optimal displays under strong light and outdoors.

Convenient Operation

• Ergonomics design for the keyboard and button, suitable for bimanual operation.

Connection

• USB port for data communication via USB flashes disk

• HDMI port for projection of weld inspection training

Power

• AC/DC power supply; high-energy lithium battery with battery life more than 6 hrs.
